In the early days of horizontal remediation wells, the estimated costs made many projects completely unfeasible. However, with the advance of technology in directional drilling and innovative solutions within the environmental industry, this technology is becoming affordable and practical.

Like most environmental projects, the cost of a Horizontal Remediation Well will depend on the size and scope of the project. Outlined below are three hypothetical, but yet typical horizontal well projects.

A typical small Horizontal Remediation Well project

A hypothetical dry cleaner sitting on a quarter acre lot.

Contamination and Objective: Removal of separate phase hydrocarbon, remediation of dissolved hydrocarbons and control/prevent offsite migration

Number of horizontal wells: Two 2” PVC Soil Vapor Extraction Wells

Horizontal Well depth: 7 feet below ground surface

Horizontal Well length: 70 feet

Screen Design: Well designed at 3.5 inches of mercury

Lump Sum well installation estimated costs: $25,000 to $35,000

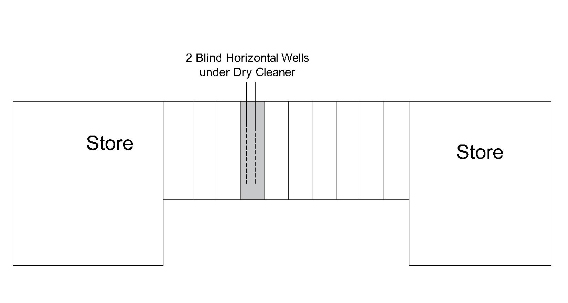

Horizontal Well Layout - Small Commercial Facility

A typical medium Horizontal Remediation Well project



Hypothetical gas station project, < 1 acre in size

Contamination and Objective: Prevent offsite migration of separate and dissolved phase hydrocarbons, recovery of separate phase and remediation of dissolved hydrocarbons

Number of horizontal wells: Three 3” fiberglass wells

Horizontal Well depth: 10 feet and 22 feet

Horizontal Well length: 250 feet each

Screen Design: Two Air Sparge operating at 1 scm per foot and One Soil Vapor operating at 2 sfm per foot.

Lump Sum well installation estimated costs: $150,000 to $200,000
Horizontal Well Layout - Medium Fuel Facility

A typical large Horizontal Remediation Well project



Hypothetical manufacturing facility approximately 10-acre size property

Contamination and Objective: Removal of separate phase hydrocarbons, prevention of off-site migration and remediation dissolved hydrocarbon

Number of wells: 12 wells

Horizontal Well depth: 15 to 30 feet in depth

Horizontal Well length: Each well averages 500 feet in length

Screen Design: Eight Air Sparge operating at 1 scm per foot and Four Soil Vapor operating at 2 sfm per foot.

Lump Sum well installation estimated costs: 900,000 to 1,200,000

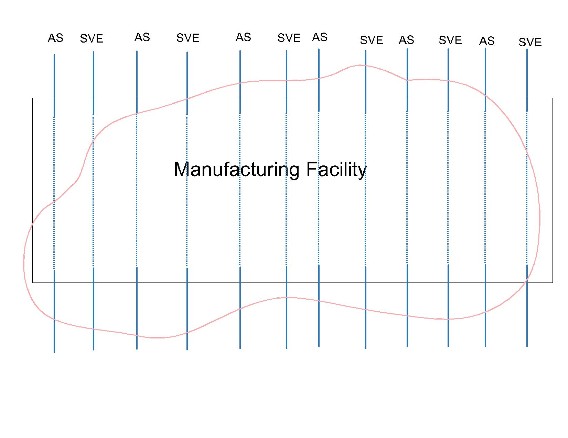

Horizontal Well Layout - Large Manufacturing Facility
